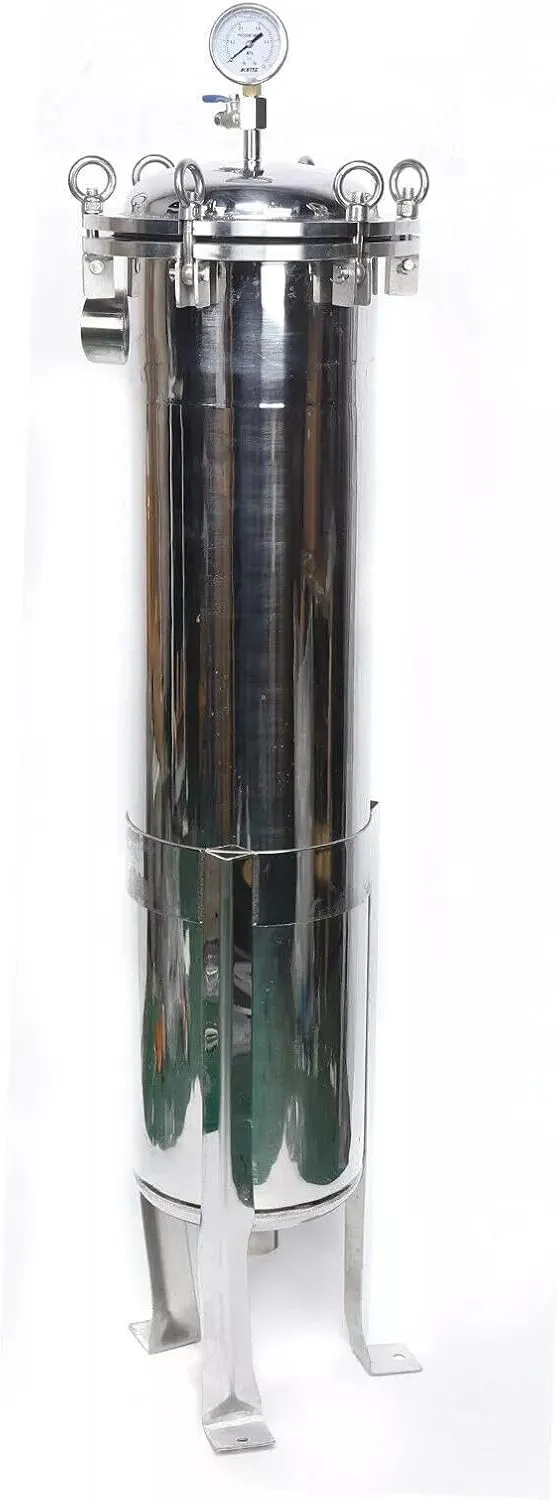

- 【High Efficiency】Bag filter housing has excellent performance and can be realized to work in high efficiency confinement. The filtrate flows into the filter bag through the side inlet pipe of the filter housing. The filter bag itself is installed in the reinforced mesh basket, and after the liquid penetrates into the filter bag of the required fineness, qualified filtrate can be obtained, and the impurity particles are intercepted by the filter bag.
- 【Selected Materials】Industrial fluid filter is a pressure filtration device, which is mainly composed of filter cartridge, filter cartridge cover, quick-opening mechanism and stainless steel filter bag reinforcing mesh. Excellent performance, durable
- 【Product Parameters】Material: 304 stainless steel, Specification: Diameter: 219mm, Height: 1145mm, Wall Thickness: 2.0mm, Bag Specification: 180*810mm, Filtering Area: 0.46m2, Maximum Flow Rate: 30-40t/h, Import/Export: DN50 inner line, Pressure: 1.0 Mpa.
- 【Easy Operation】Bag filter housing2. Simple and flexible operation, small probability of side leakage of the filter bag, can correctly ensure the filtration precision, fast replacement of the filter bag. In addition to the movable foot design, the height can be adjusted about 1145mm.
- 【Easy To Clean】The inner and outer surfaces of the filter are solved by mechanical sandblasting and polishing, with smooth and easy-to-clean surfaces.
To Filter principle
The bag filter is a pressure filter device, which mainly consists of a filter cylinder, a filter cylinder cover, a quick opening mechanism, and a stainless steel filter bag reinforcement net. The filtrate flows into the filter bag from the side inlet pipe of the filter housing. The filter bag itself is installed in the reinforced mesh basket. The qualified filtrate can be obtained when the liquid penetrates the filter bag of the required fineness level, and the impurity particles are intercepted by the filter bag. This machine is very convenient to replace the filter bag, and the filter basically has no material consumption.
Bag filter has many advantages such as reasonable structure, good sealing, strong circulation ability, and easy operation. In particular, the probability of side leakage of the filter bag is small, the filtering accuracy can be correctly guaranteed, and the filter bag can be changed quickly, which reduces the operating cost. The inner and outer surfaces of the filter are solved by mechanical sandblasting and polishing, which is smooth and easy to clean.
Product parameters:
Package weight: 22kg
Material: 304 stainless steel
Specification: Diameter 219mm
Height: 1145mm
Wall thickness: 2.0mm
Bag specifications: 180*810mm
Filter area: 0.46㎡
Maximum flow : 30-40t/h
Import/Export: DN50 inner wire
Pressure: 1.0 Mpa
Net Weight：20Kg（44.09Lb），
Packing list:
Filter*1
