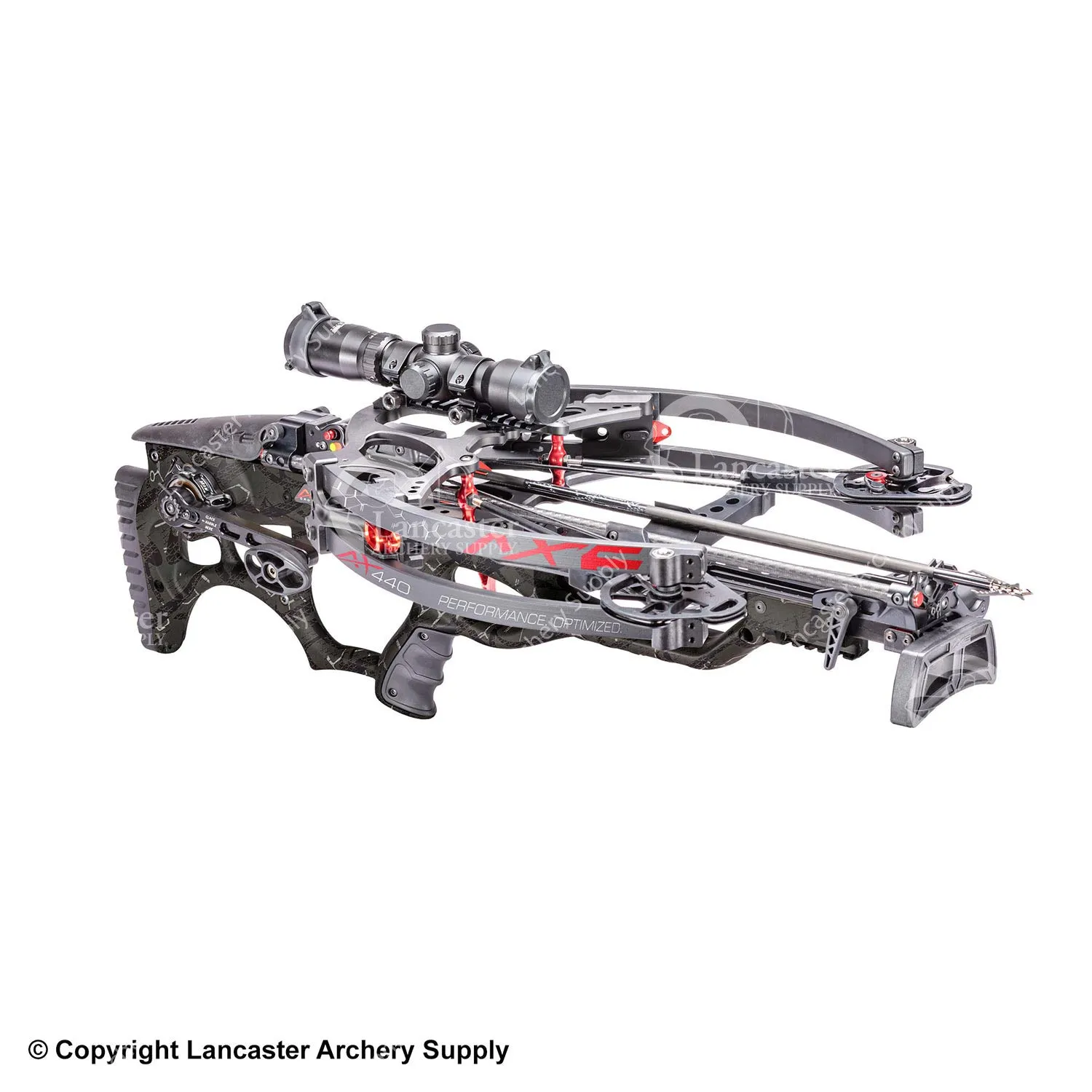

- Maneuverable, stable, and easily shouldered 30.5-inches long and less than 12-inches axle-to-axle (cocked) the weight of the AX440 is centered over the shooter's hand by way of a balanced shoot-through stock and riser design and reverse limb system
- Most efficient part of the split limb system creates a 15" power stroke to launch bolts at 440 feet-per-second
- Combined with the proprietary cam system's technology to center the string along the same plane throughout the entire power stroke
- Unlike the one-piece aluminum rail concepts of conventional crossbow designs that rob speed, efficiency, and bolt life, the stock of the AX440 also eliminates the rail and utilizes dual carbon guide rods along the entire length of the stock
- When combined with a shoot-through riser and a tunable roller rest these features create a free-floating arrow system that minimizes contact, friction, and torque along the arrow's entire path
- Greater efficiency, accuracy, and speed output
- The AX440 also is designed to shoot the proven small diameter 19.5-inch (.166 I.D.) bolt system to produce extreme accuracy, durability, penetration, and safety
- The interaction between the bolt's premium aluminum capture nock system and the bow's string creates an audible sound to note full connection and preparation to interface with the trigger system for unprecedented safety
- Adjustable Butt Stock
- Adjustable Cheek Comb
- Shoot Through Riser
- Balanced Center of Mass
- Integrated Crank with Cock / De-Cock Feature (sliding trigger housing)
- Trigger (3.5 lbs. and zero creep)
- Automatically resets to safe every shot
- Tunable Roller Rest
- 85% Cam Efficiency
- Ergonomic Chassis Design
- Adjustable Foot Hold
- Includes:
- Integrally Mounted 3 Arrow Quiver
- New Multi Range Illuminated 440 Reticle Scope
- (3) AXE micro .166" diameter 19.5" bolts (403 grains with included 100-grain practice tips)
Specifications:
- Cocked Axle to Axle: 11.5"
- Un-cocked Axle to Axle: 16.6"
- Power Stroke: 15"
- Limb Weight: 204 lbs.
- Trigger Pull: 3.5 lbs. (AXE 2 Stage Sliding Trigger Assembly)
- Overall Height: 12.25"
- Overall Length: 30.5" (Foothold collapsed)
- Overall Length: 34.75" (Foothold extended)
- Weight: 10.5 lbs. (Without Scope)
- Speed: 440 fps
